Precision sheet metal fabrication

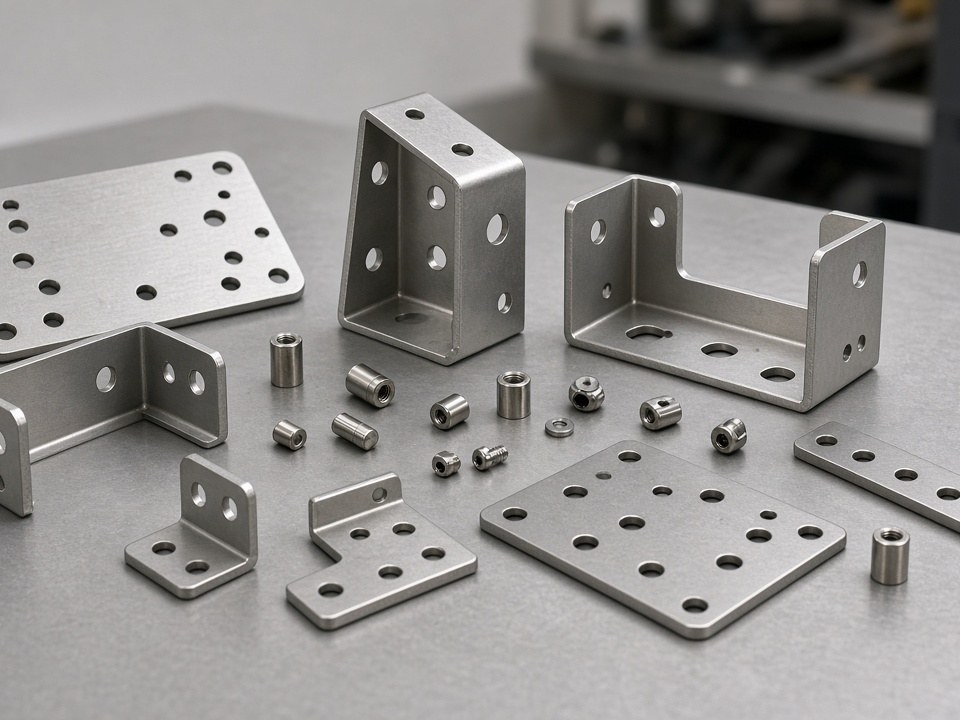

Sheet Metal Brackets & Hardware
Enclosuremfg manufactures functional internal components for industrial equipment—from motor mounts and electrical chassis supports to cable routing and structural connections. Built for dependable alignment, load retention, and consistent fit inside complex machinery.
High-capacity CNC bending and automated hardware installation help deliver the hidden framework your equipment depends on, with repeatable geometry and assembly-ready captive fasteners.
200T
Press brake capacity
6 m
Maximum part length
7
Clinching and tapping stations
Manufacturing capabilities
Consistent geometry. Secure hardware. Assembly-ready parts.
A coordinated process supports the tight tolerances and reliable connections required of internal equipment structures.
01 / Forming
CNC bending for complex bracket geometry
Multi-axis 200-ton and 100-ton press brakes produce consistent bend angles and help maintain flatness across long flanges. Multiple stages can be formed in a single setup, supporting repeated 90-degree and offset bends with controlled spring-back.
Parts up to 6 meters long are processed on the same platforms used for larger enclosures, helping keep bracket mounting holes aligned with the finished assembly.
02 / Hardware integration
Automated clinching for demanding connections
Automated clinching installs PEM-style nuts, studs, and standoffs into bracket flanges and chassis plates. The mechanical interlock is designed to resist push-out and torque loads in vibration-heavy applications, including battery racks and CNC machine frames.
Seven dedicated clinching and tapping stations run alongside bending. Captive hardware is seated to specification without secondary welding or manual insertion.
Integrated process
Formed brackets can leave the line with fasteners already installed and ready for assembly.
Materials & applications
Hardware for the hidden structure of your equipment
From prototypes to recurring production, parts are made to support mounting, routing, reinforcement, and electrical integration.
Material range
Carbon steel, stainless steel, and aluminum sheet from 1 mm to 6 mm.
Laser-cut blanks receive edge conditioning before bending. Electrical chassis parts may use 304 or 316 stainless steel with #4 finish on visible faces.
Typical project scope
-
Motor mounting plates
Reinforced plates and brackets for motor installation.
-
Electrical chassis brackets
Supports carrying 19-inch rack mounts.
-
BESS cabinet structures
Internal stiffeners and cross members.
-
Custom formed brackets
L-brackets, U-channels, and Z-brackets with multiple hole patterns.
-
Electrical connection supports
Grounding straps and bus-bar supports.
Batch sizes range from 10-piece prototypes to recurring 300-unit annual releases.
Discuss Your ProjectQuality controls
Measured for fit, documented by lot
Six QA specialists verify critical features throughout production, helping brackets and hardware arrive ready for equipment assembly.
Bend geometry
Bend angles checked with digital protractors; flatness and perpendicularity documented on every lot.
Hardware seating
Installed hardware verified with torque wrenches.
Hole position
Positions checked against 3D CAD to support assembly alignment.
Lot documentation
Inspection data travels with the shipment to help reduce incoming inspection at your site.
Inspected parts proceed to the specified finishing stage, including powder coating or passivation.
Request a quote
Send your files. Start with a DFM review.
Share your STEP or DXF files along with material and finish requirements. Enclosuremfg returns a DFM review and firm pricing within two business days.
Facility visits at Building 4, Kuiqing Road, Qingxi Town, Dongguan City, Guangdong Province are available for teams evaluating long-term supply agreements.
info@enclosuremfg.comTell us about your bracket or hardware requirements
Include your drawings, target quantities, material, and finish details to help us review your project.
